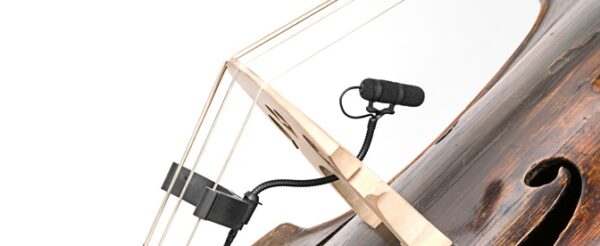

Specifications for d:vote™ CORE 4099B Clip Microphone for Bass

Directional characteristics:
Supercardioid

Principle of operation:
Pressure gradient

Cartridge type:
Pre-polarized condenser

Frequency range:
20 Hz to 20 kHz

Frequency range, ± 2 dB, 20 cm (7.9 in) distance:
80 Hz to 15 kHz with 2 dB soft boost at 10 to 12 kHz

Sensitivity, nominal, ±3 dB:
6 mV/Pa; -44.5 dB re. 1 V/Pa

Equivalent noise level, A-weighted:
Typ. 23 dB(A) re. 20 µPa (max. 26 dB(A))

S/N ratio, re. 1 kHz at 1 Pa (94 dB SPL):
71 dB

Total harmonic distortion (THD):
< 1 % up to 123 dB SPL peak; 60 dB at 50 Hz to 15 kHz with DAD6001 XLR adapter

Power supply:
Min. 5 V to max. 50 V through DPA adapter for wireless systems; 48 V phantom power ±4 V with DAD6001 XLR adapter

Current consumption:
1.5 mA; 3.5 mA with DAD6001 XLR adapter

Connector:
MicroDot

Color:
Black

Weight:
33 g (1.16 oz)

Microphone length:
45 mm (1.8 in)

Cable length:
1.8 m (6 ft)

Polarity:
Positively increasing sound pressure produces positive going voltage at MicroDot pin (and pin 2 on DAD6001 XLR adapter)

Operating temperature range:
-40 °C to 45 °C (-40 °F to 113 °F)

Relative humidity:
Up to 90 %

Gooseneck, length:
140 mm (5.5 in)
