Descrizione

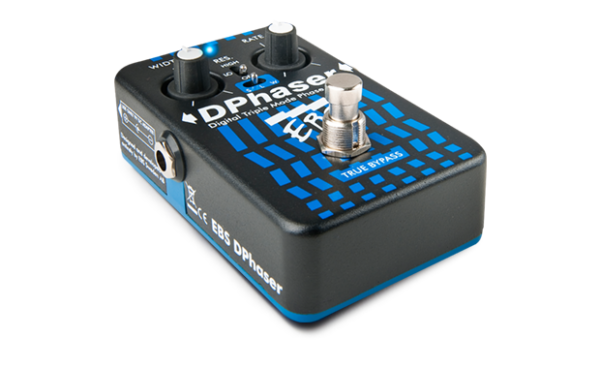

TECHNICAL SPECIFICATIONS EBS DPHASER


Nominal Input Level
– 8 dBv

Input Impedance
700 kohms

Bypass Bandwidth
+0 / -3 dB
20 – 20k Hz

Phaser Types
Short (S)
4 or 6 stages


Long (L)
8 or 10 stages


Wide (W)
18 stages differential

LFO Range
min / max
0.05-10 Hz

LFO Types

Sine and Triangle

Low frequency bypass
Optional
< 130 Hz

Sampling Frequency
48 kHz

Dynamic Range
Typ
100 db A-weighted

Dimensions (WxHxD)
70 x 115 x 35 mm / 2.8 x 4.5 x 1.4"

Weight
480g (1.07 lb.)

Bypass
True Bypass

Power Requirements
9 V DC Regulated, 110 mA max*

* EBS Recommend the use of the EBS AD-9+ DC adapter. The adapter can supply up to twenty pedals at the same time.
