Descrizione

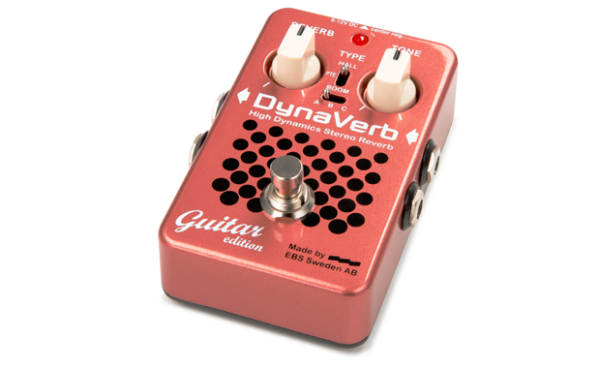

TECHNICAL SPECIFICATIONS EBS DYNAVERB GUITAR EDITION


Nominal Input Level
– 8 dBv

Input Impedance
1 Mohms stereo 500 kohms mono

Dry Bandwidth
+0 / -3 dB
20 – 20k Hz

Reverb Bandwidth
+0/-3 dB
20 – 20k Hz

Tone Low Pass Filter
min / max
1 / 20 kHz

Reverb Types

3 Rooms, 3 Plates and 2 Halls

Sampling Frequency
48 kHz

Dynamic Range
107 dB A-weighted

Dimensions (L x W x H)
2.8 x 4.5 x 1.4” (70 x 115 x 35 mm)

Weight
400g (0.88 lb.)

Bypass
True Bypass

Power Requirements
9 -12 V DC Regulated, 100 mA max.

* EBS Recommend the use of the EBS AD-9+ DC adapter. The adapter can supply up to twenty pedals at the same time.
