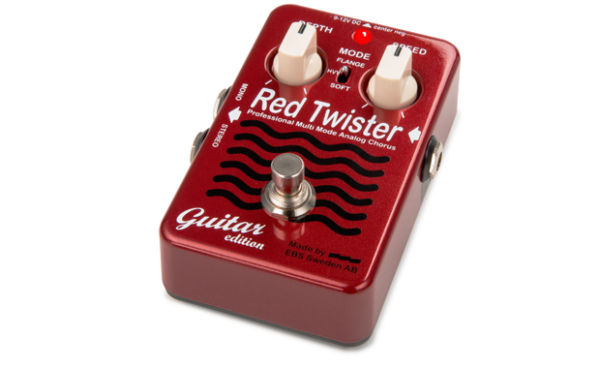

TECHNICAL SPECIFICATIONS EBS RED TWISTER GUITAR EDITION


Nominal Input Level
– 8 dBv

Input Impedance
700 kohms

Bandwidth
+0/-3 dB
20 – 20 kHz

Delay Bandwith
+0/-3 dB
200 – 8 kHz

Delay Level mix
min/max
-oo – +3 dB

Center Delay Time
Flange
1.5 ms


Chorus
2.8 ms


Pitch Modul.
4.1 ms

Modulation Depth
min/max
+/- 50% of nominal delay time

LFO Range
min/max
0.15 – 7.5 Hz

Bypass
True Bypass

Dimensions (L x W x H)
2.8 x 4.5 x 1.4” (70 x 115 x 35 mm)

Weight
400g (0.88 lb.)

Power Requirements
9-12 V DC Regulated, 35 mA max

* EBS Recommend the use of the EBS AD-9+ DC adapter. The adapter can supply up to twenty pedals at the same time.
