Descrizione

Acoustical Specifications

Frequency Response -3 dB: 40 Hz ÷ 20 Hz
Max SPL: 128 dB
Horizontal coverage angle: 120°
Vertical coverage angle: 30°
Fullrange: 8 x 2″, 1.0″ v.c.
Woofer: 12″, 2.5″ v.c.

Input/Output Section

Input connectors: Jack-XLR male
Output connectors: XLR female
Input sensitivity: -2 dBu / + 4 dBu

Processor Section

Crossover frequencies: 220 Hz
Protections: thermal, rms
Limiter: Soft limiter
Controls: Volume, EQ, phase, xover

Amplifier Specifications

Total power: 1400 W PEAK
   High frequencies: 400 W PEAK
   Low frequencies: 1000 W PEAK
Total power: 700 W RMS
   High frequencies: 200 W RMS
   Low frequencies: 500 W RMS
Cooling: Convection
Connections: VDE connector

Cabinet

Cabinet Material: Baltic birch plywood
Hardware: 2 x M6
Handles: 1 top
Pole Mount/Cap: Yes
Colour: black

Physical Specifications

Height: 530/20.86 mm/inch
Width: 346/13.62 mm/inch
Depth: 459/18.10 mm/inch
Net Weight: 23.8/50.70 kg/lbs

I dati riportati sono indicativi e non vincolanti; RCF si riserva la facoltà di effettuare eventuali modifiche in qualsiasi momento e senza preavviso.

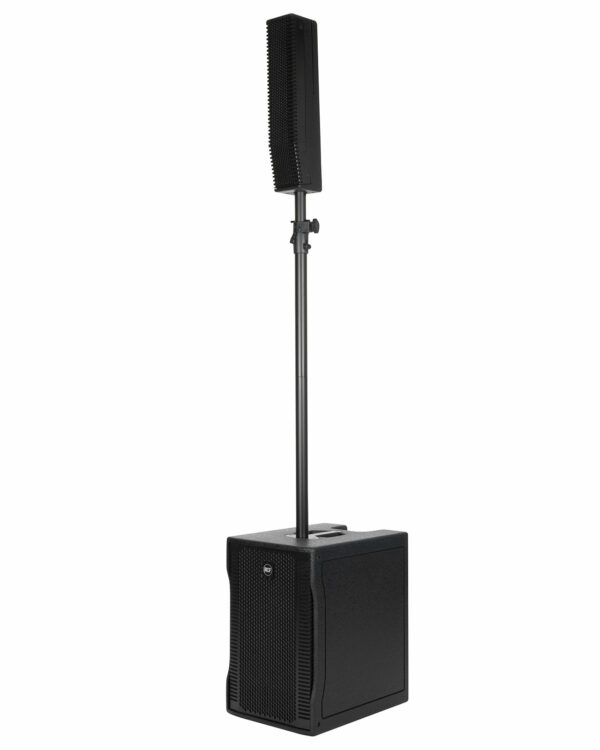

EVOX TWO-WAY ARRAYS
EVOX array design features constant horizontal directivity coverage of 120°, offering a perfect listening experience to the audience. The vertical array design is progressively shaped to guarantee a correct listening from the first row and to avoid a high frequency beaming typical of straight array

LIVE SOUND
Extensive testing with instruments and voices during the design process as well as power and reliability testing make the EVOX system the perfect workmates for solo musicians or bands.

DJs
Extremely deep response, precise low frequency control and incredible audio quality, easy to transport and quick to set up. EVOX is without any doubt a smart choice for DJs.

Conferences
Extraordinary clarity and dynamic of vocal reproduction, both at low and very high levels. EVOX is a great tool for conferences and speeches.

I dati riportati sono indicativi e non vincolanti; RCF si riserva la facoltà di effettuare eventuali modifiche in qualsiasi momento e senza preavviso.
