Descrizione

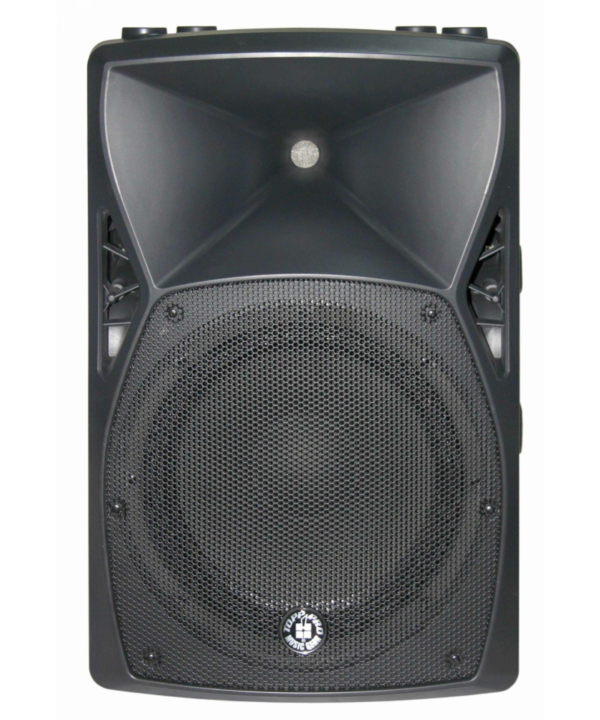

TOPP PRO X12A MP3 CASSA AMPLIFICATA 400W RMS CON LETTORE MP3
Diffusore attivo 12“ 400W Cassa in Plastica Biamplificata 150W (classe D) + 50W (classe AB). Woofer da 12″ Driver da 1″. SPL 118 dB di picco, 14Kg. La serie TOPP PRO X è, il miglior compromesso tra componenti ottimi, un cabinet robusto, alta efficienza e un costo abbordabile. I diffusori della serie X possono essere usati per molte applicazioni come live, centri di conferenze e disco pub.Tutti i prodotti TOPP PRO sono progettati e testati da un team di ingegneri altamente qualificato con oltre 20 anni di esperienza. Ogni prodotto TOPP PRO viene testato nelle condizioni più, stressanti ed impegnative.
CARATTERISTICHE:
System Type: 2-Way Active Vented Speaker
Transducer Low: 12” Woofer, 2″ voice coil
Transducer Driver: 1” Ferrite Tweeter, 1″ Voice Coil
Horn Coverage H° x V°: 90°H x 60°V
Frequency Response (-6dB): 60Hz-20KHz
Crossover Frequency: 2100 Hz
Max SPL: 118dB at 1M
Power Rating: 400W (PROGRAM) / 800W (PEAK)
Connector: Line In & Link With XLR External Controls: Volume Control/ Power ON with Green LED / Clip Limiter with Red LED
Electronic Protections: Thermal / Overload / Analog limiter / Compressor
Power Supply: 110V-240V ~50/60Hz Enclosure Construction: Plastic cabinet, Trapezoidal & Monitor shape, Metal grille, Rubber foot, 3 x Handle (both side and Top)
Mounting: 36mm standard pole-mount
Dimensions (HxWxD): 607 x 380 x 337mm
Net Weight: 13.75 (kg)
LF Transducer
12″ (305mm) Woofer, 3″ Voice coil
HF Transducer
1″ exit, ferrite magnet compression driver with 1.75″ edgewound copper clad aluminium voice coil
Frequency Response (-6 dB)
48Hz-20KHz
Frequency Range (-10 dB)
42Hz-20KHz
Maximum Rated SPL
130dB Peak
Crossover Frequency
At 1.6KHz with 24dB filter slope, Linkwitz-Riley Type
Power
2000W PROGRAM / 4000W PEAK
Controls
Power / 3 x Level / Rotary encoder
Indicators
Monochrome OLED Display 1.65″ x 1.1″ (42.04mm x 27.22mm), 2 x Power LED (front and rear), 3 x Input Signal LED, Input 1 MIC selected LED, Input 2 HI-Z selected LED, Limiter active LED
Connectors
2 x locking XLR/F 1/4″ combo (Mic/Line Input and Hi-Z/Line Input), 1 x 3.5mm TRS (Stereo Input), 1 x XLR/M (Mix Output), 1 x locking IEC power connector
AC Power Input
110-120V~50/60Hz or 220-240V~50/60Hz Switchable
Enclosure
Plywood cabinet,resistant black paint, rubber feet, metal handle, metal grille with black foam
Attachment Points
One metal standard pole-mount, 10 x M10 threaded inserts plus integrated Pull-Back
Dimensions (HxWxD)
637 x 363 x 350 mm / 25.08″ x 14.29″ x 13.78″
Net Weight
18.77 kg / 41.38 lbs
